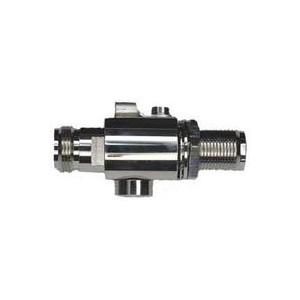

Surge Protector up to 6GHz
Surge Protector, for antennas upto 6 GHz.
Currency
|
Frequency range |
<6 GHz |
|
Connectors |
N Female to N Female |
|
VSWR |
<1.5 |
|
Insertion Loss |
<0.4dB |
|
DC Breakdown Voltage |
DC230V/DC350V |
|
Impulse Breakdown Voltage |
<700V 5KV/M |
|
Impulse Wave Discharge |
10000A |
|
Impedance |
50 OHM |
|
Insulation Resistance |
>10000 MOHM |
|
Input Power |
10W |
|
Operating Temperature |
-40C ~ +85C |
|
Weight |
130g |
Features
• Ultra Fast Discharge < 1KV / usec
• 0.2dB @ 2.4GHz, .4dB @ 5GHz Max Insertion Loss
• VSWR better than 1.4:1
• Rugged, Lightweight and Waterproof
• Bulkhead Mount N Female connector
Applications
• Surge Protection for Antenna Systems • 900MHz, 2.4GHz @ 5GHz Wlan Systems
