MT R52Hn

MT R52Hn

High Power (25dBm/316mW) A/B/G/N MIMO miniPCI card with 2 x MMCX connectors.

Smulkiau


59,57€

Prekės laikinai sandėlyje nėra

0 vnt


Chipset

AR9220

Radio Power

25dBm/316mW

Sensitivity

802.11a 25dBm/-97dBm @ 6Mbps
                21dBm/-80dBm @ 54Mbps
802.11b 24dBm/-93dBm @ 1Mbps
                24dBm/-93dBm @ 11Mbps
802.11g 25dBm/-94dBm @ 6Mbps
                22dBm/-54dBm @ 54Mbps
802.11n 25dBm/-94dBm @ MCS0 20MHz 2GHz
                24dBm/-92dBm @ MCS0 40MHz 2GHz
                21dBm/-78dBm @ MSC7 20MHz 2GHz
                20dBm/-75dBm @ MCS7 40MHz 2GHz
802.11n 24dBm/-97dBm @ MCS0 20MHz 5GHz
                22dBm/-92dBm @ MCS0 40MHz 5GHz
                18dBm/-77dBm @ MSC7 20MHz 5GHz
                17dBm/-74dBm @ MCS7 40MHz 5GHz

Wireless Standards

IEE802.11a/b/g/n

Connections

2 x MMCX

Power Consumption

Max 7W

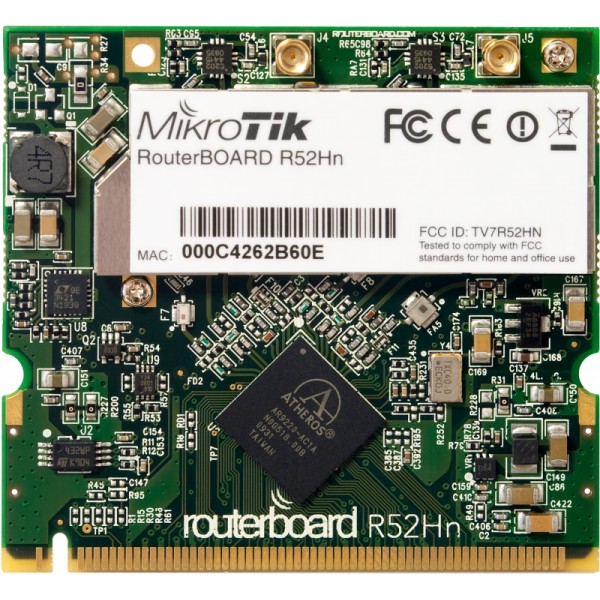

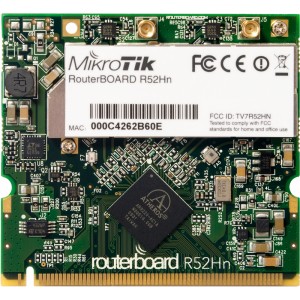

RouterBOARD R52Hn miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. 802.11n in your Wireless device provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming. R52Hn has a high power transmitter, bringing you even more range.
